- GIGABYTE
Цена
€373 50 / 730 50 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/X870E-AORUS-PRO-X3D-ICE
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
CPU's supported
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Chipset
AMD X870E
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back pane
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x HDMI port (Note)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x HDMI port (Note)
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB Type-C® ports, with USB 3.2 Gen 2 support
2 x USB4® USB Type-C® ports (DisplayPort (Note))
1 x RJ-45 port
3 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audi
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details
Bluetooth
5.4
BIOS
1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/X870E-AORUS-PRO-X3D-ICE |
| Chipset | AMD X870E |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for: |
| CPU's supported | AMD Ryzen™ 9000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 8000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 7000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Support for S/PDIF Out |
| Audio | Realtek® ALC1220 CODEC |
| Audio | * The back panel line out jack supports DSD audio. |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Expansion Slots | AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Wireless | (Actual data rate may vary depending on environment and equipment.) |
| Wireless | - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | - BLUETOOTH 5.4 |
| Wireless | * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) |
| Wireless | ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 |
| Wireless | - Support for 11be 320MHz wireless standard |
| Wireless | ***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
| Graphics | * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports |
| Graphics | * Support for HDMI 1.4 version |
| Graphics | - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
| Graphics | - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: |
| Graphics | * Support for DisplayPort 1.4 version and HDR |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | Support for Smart Backup |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 512 Mbit flash |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs: |
| Storage | 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: |
| Storage | AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| Storage | 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| Storage | * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors |
| Bluetooth | 5.4 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 2 x 8-pin ATX 12V power connectors |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x reset button |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | Back Panel Connectors |
| Connectors | 1 x HDMI port (Note) |
| Connectors | 1 x RJ-45 port |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 4 x System fan headers |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| Connectors | 2 x antenna connectors (2T2R) |
| Connectors | 3 x USB 3.2 Gen 1 ports |
| Connectors | 4 x M.2 Socket 3 connectors |
| Connectors | 2 x USB 3.2 Gen 1 headers |
| Connectors | 1 x power button |
| Connectors | 1 x Clear CMOS button |
| Connectors | 1 x noise detection header |
| Connectors | 2 x temperature sensor headers |
| Connectors | 2 x system fan/water cooling pump headers |
| Connectors | 2 x USB4® USB Type-C® ports (DisplayPort (Note)) |
| Connectors | 2 x audi |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| Connectors | 1 x PCIe power connector |
| Connectors | 5 x USB 3.2 Gen 2 Type-A ports (red) |
| Connectors | 2 x USB Type-C® ports, with USB 3.2 Gen 2 support |
| USB | CPU: |
| USB | Chipset: |
| USB | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| USB | Chipset+USB 3.2 Gen 1 Hub: |
| USB | CPU+ASMedia USB4® controller: |
| USB | - 4 x USB 3.2 Gen 1 ports available through the internal USB headers |
| USB | - 2 x USB4® USB Type-C® ports on the back pane |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) |
| USB | - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| USB | - 3 x USB 3.2 Gen 1 ports on the back panel |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
| Атрибут | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Форм фактор | ATX |
| Чипсет | AMD X870E |
| Тип памет | DDR5 |
| Слотове за памет (count) | 4 |
| Максимална памет (GB) | 256 |
| M.2 слотове (count) | 4 |
| SATA портове (count) | 4 |
| PCIe x16 слотове (count) | 3 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (count) | 2 |
| RGB подсветка | Да |
| Тегло | 0.00кг |
Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.

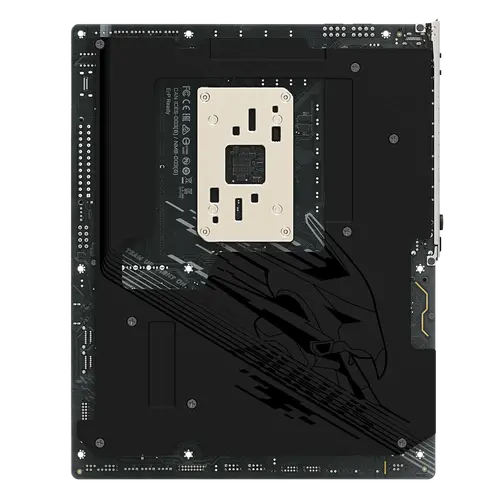

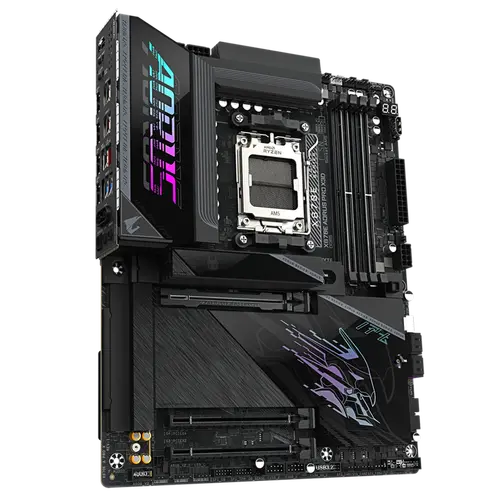

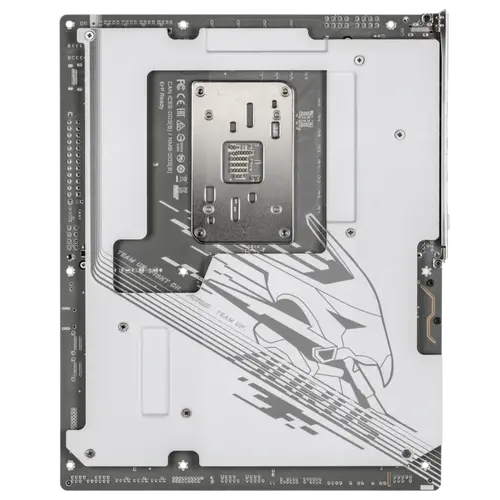

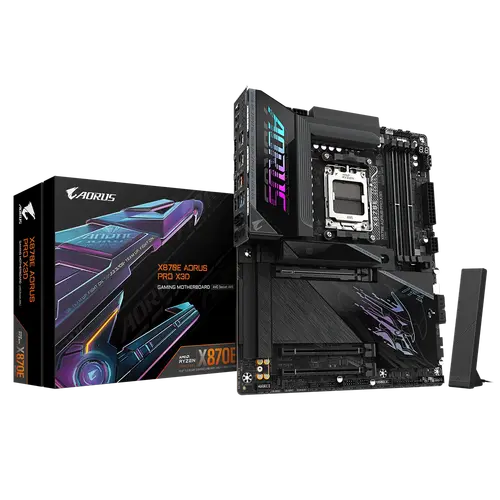

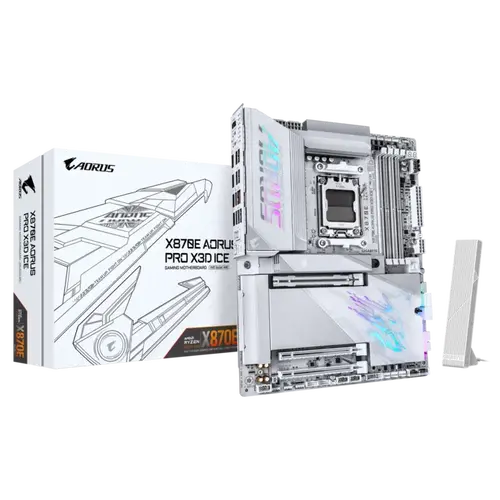

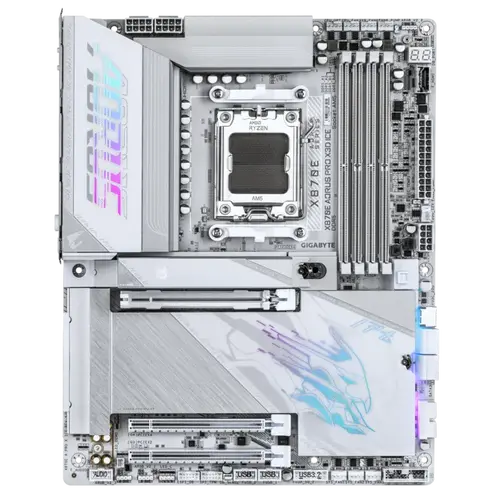

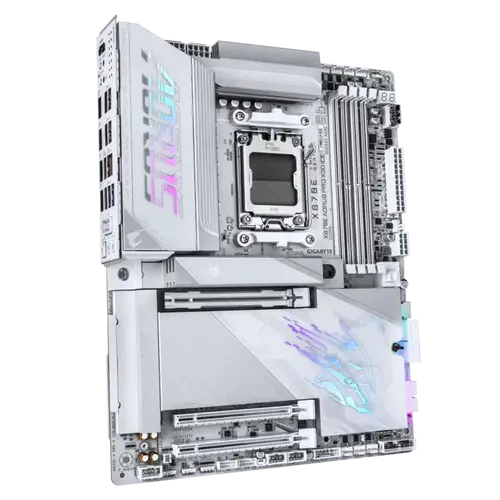

Дънна платка GIGABYTE X870E AORUS PRO X3D ICE — максимална производителност за AMD AM5 с DDR5 и PCIe 5.0
Създадена за процесори AMD Ryzen™ от следващо поколение, GIGABYTE X870E AORUS PRO X3D ICE предлага безкомпромисна мощ с поддръжка на DDR5 памет, PCIe 5.0 графика и съхранение, както и модерна свързаност. Нейният впечатляващ бял дизайн и стабилно захранване я правят идеалната основа за гейминг и създаване на съдържание от висок клас.
Ключови Предимства
- Производителност от ново ниво — AMD X870E чипсет с AM5 сокет, готов за Ryzen™ 7000/8000/9000 серии, PCIe 5.0 и DDR5 памет до 8000+ MHz (OC).
- Ултрабързо съхранение — Множество M.2 слота с PCIe 5.0 x4 поддръжка за светкавично бързи NVMe SSD дискове, плюс SATA портове за допълнителни устройства.
- Разширено охлаждане — Уголемени VRM радиатори, M.2 Thermal Guard и Smart Fan 6 технология гарантират стабилна работа при тежки натоварвания.
- Свързаност от ново поколение — Wi-Fi 7, 2.5GbE LAN, USB-C 20Gbps и HDMI за безпроблемна мрежова и периферна поддръжка.
- Зашеметяващ външен вид — Бяла платка с персонализирано RGB Fusion осветление и адресируеми LED хедъри за изчистен, модерен облик.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AMD AM5 |
| Чипсет | AMD X870E |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 3 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка GIGABYTE X870E AORUS PRO X3D ICE
- Wi-Fi антена
- SATA кабели
- M.2 винтове и стойки
- Ръководство на потребителя
Запишете се за нашият Бюлетин
Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.
Методи за Плащане
- Наложен Платеж
- Кредитна/Дебитна Карта
- Банков Превод
- На изплащане ПБ Лични Финанси
